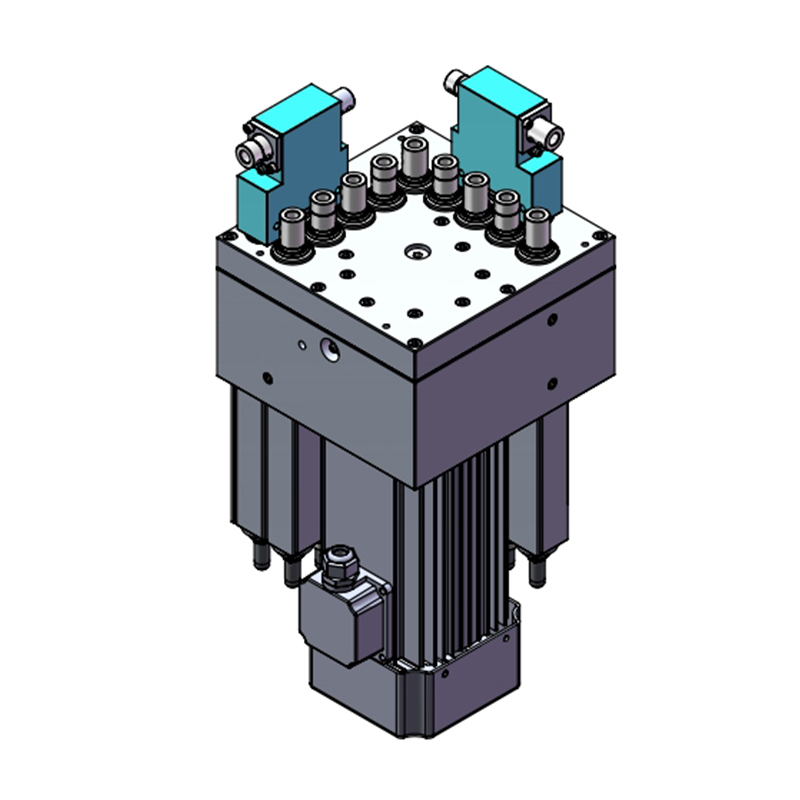

HQP-V9H2

Back To List Contact Us

Description

Motor power: 3HP 2.2KW

Motor voltage: 220/380V

Motor rated frequency: 50/60Hz

Motor rated speed: 2800/3400rpm

Vertical shaft speed: 4500rpm

Horizontal shaft speed: 4500rpm

Stroke: 68mm

Air pressure: 0.65-0.8MPa

Lubrication grease: KLUBER ISOFLEX TOPAS L 32 N

Tool interface: Φ10mm

Installation depth: 20mm

Previous：HQP-V7H4R

Download

HQP-V9H2.x_t

Size： 4.0MB

2025-04-25 17:29:17

Download

HQP-V9H2 Outline Drawing.pdf

Size： 1.2MB

2025-04-25 17:28:45
